Original price 5 514 EUR. Save 17% (937 EUR) 4 577 EUR incl. VAT

pcs

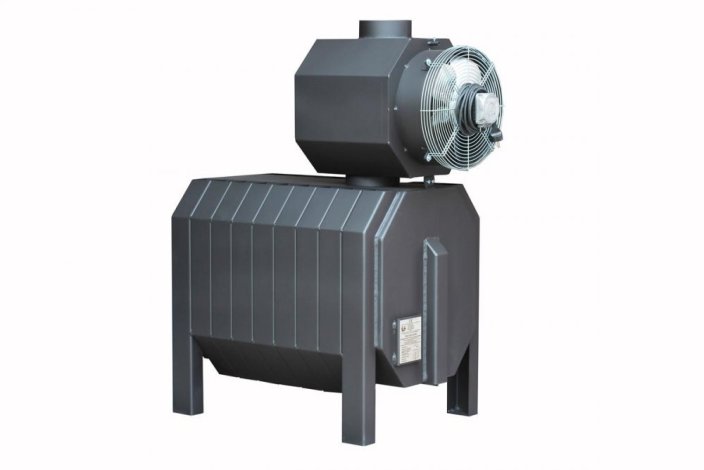

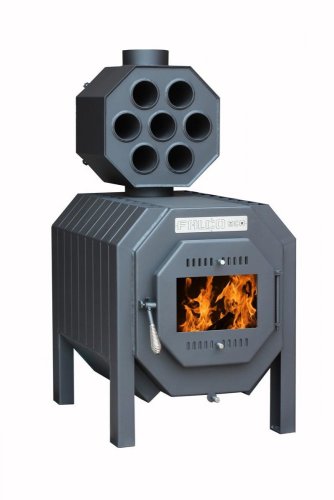

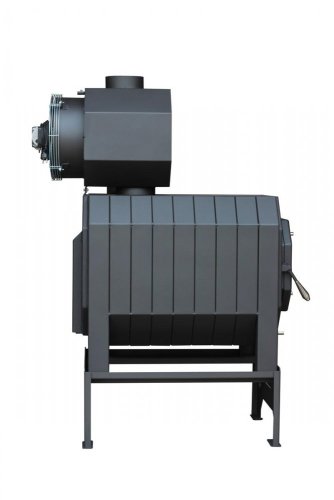

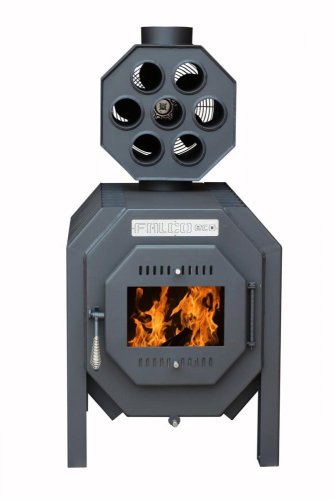

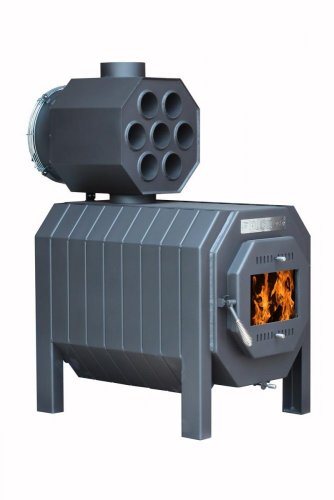

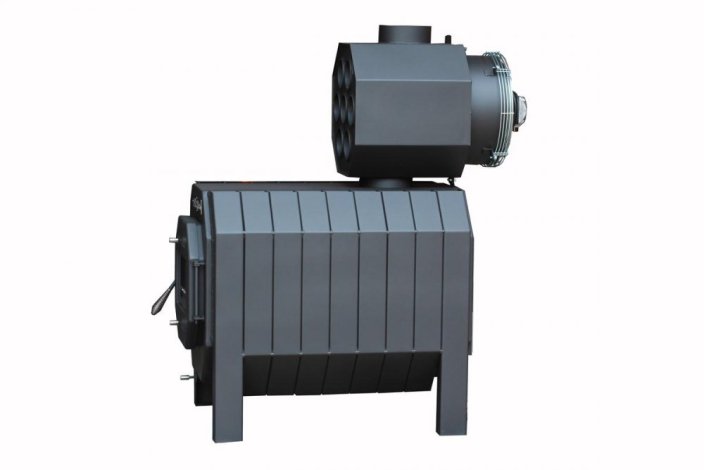

Workshop warm-air stove with ventilator for direct air heating. More

Manufacturer: LS Kamna Product code: 013FT030 Shipping and Payment

This warm-air stove with an exchanger and a fan is intended for heating up and heating residential rooms, recreational facilities or working spaces, where higher comfort of warmth supported by the flame perception is required.

The stove is further meant to heat up and heat storerooms, workshops, building sites and industrial premises.

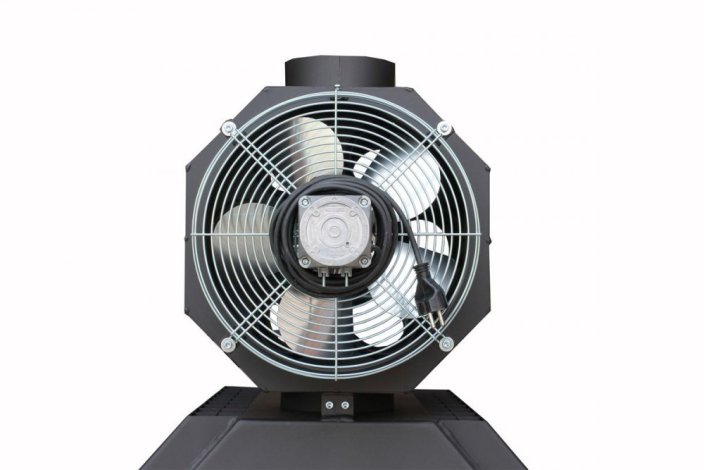

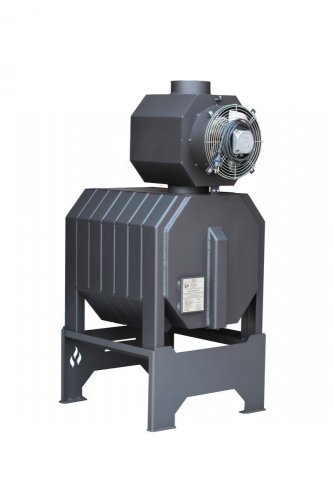

Apart from the warmth that glows from the stove surface and self-flowing warm-air through the side outlets which are located on the stove coat, the warmth is also transferred to the flowing air directly from the warmth exchanger surface. The air-flow rate is secured by an axial ventilator, thus the warm- and cold air are quickly blended in the heated space. The exhaust gases are right after passing through the warmth exchanger led away through the chimney.

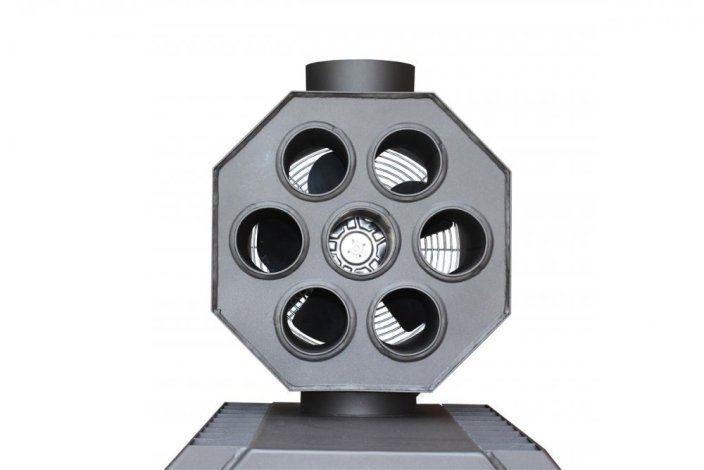

  • Built-in warmth exchanger with a fan
  • Bicameral burning system
  • Heat-resistant stainless steel gasification pipes in the combustion space
  • Easy primary air supply operating
  • Fireclay furnace
  • Low wood consumption
  • Possibility of stoking wood logs of length 70 cm

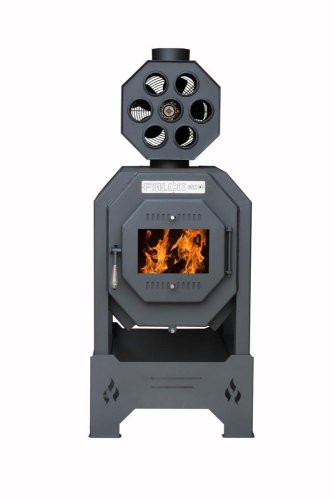

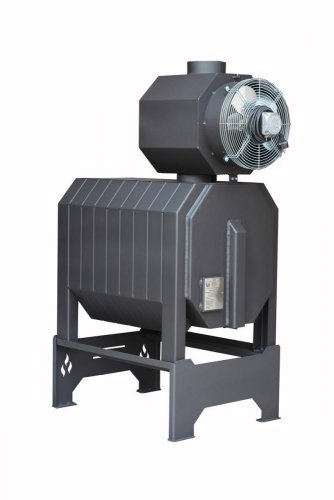

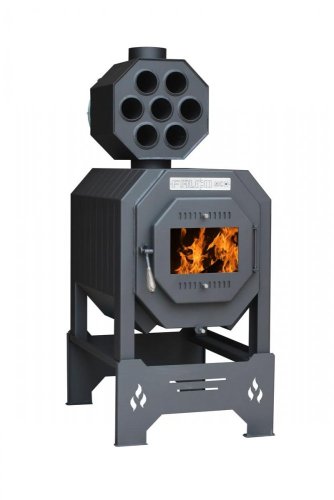

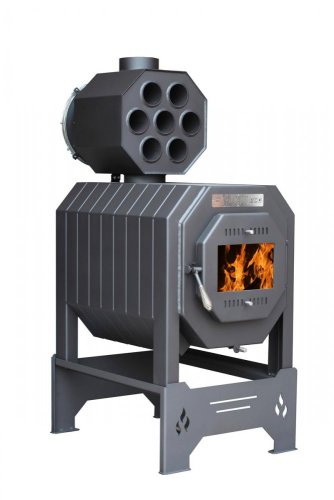

  • Pedestal fo the stove (possible to buy additionally)
  • LDS – Automatic fan revolution regulation (possible to buy additionally)
  • LDT – Automatic transformer revolution regulation (possible to buy additionally)
Parameters
Nominal performance (kW) 30
Performance (kW) 12 - 30
Heated Space (m³) 300 - 700
Fuel consumption (kg/h) 6
Efficiency (by nominal performance) (%) 87
Flue diameter (mm) 150
Chimney draught (Pa) 12
Warmed air flow rate (m³/h) 550 - 1400
Stable outlet temperature (°C) 50 - 110
Emissions at O2 = 13 % (%) 0.08
Ventilator power input (W) 30 - 90
Stove depth (mm) 1070
Stove width (mm) 558
Stove height (mm) 1170
Stove weight (kg) 180
Max. log length (mm) 700
Width/depth/height of fireplace (mm) 400/720/350
Type Warm-air stove with Ventilator
Fireplace volume (l) 88
Towing throat above
Fuel required logs, wooden briquettes, wooden splinters (up to 20 % wetness)
Temperature in the chimney (by nominal performance) (°C) 203
Stove door glasssolid (metal sheet)
Pedestal with pedestalwithout pedestal
Control unit withoutWith LDS control unitwith LDT control unit
