Workshop warm-air stove with ventilator for direct air heating. More

Manufacturer: LS KamnaProduct code: 011FT012 Shipping and Payment

This warm-air stove with an exchanger and a fan is intended for heating up and heating residential rooms, recreational facilities or working spaces, where higher comfort of warmth supported by the flame perception is required.

The stove is further meant to heat up and heat storerooms, workshops, building sites and industrial premises.

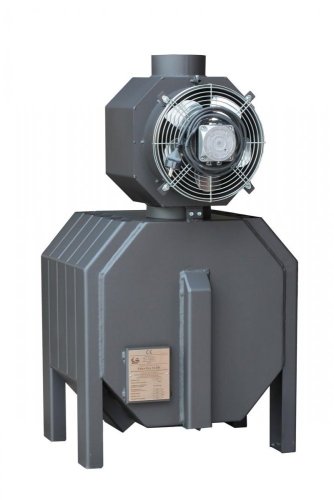

Apart from the warmth that glows from the stove surface and self-flowing warm-air through the side outlets which are located on the stove coat, the warmth is also transferred to the flowing air directly from the warmth exchanger surface. The air-flow rate is secured by an axial ventilator, thus the warm- and cold air are quickly blended in the heated space. The exhaust gases are right after passing through the warmth exchanger led away through the chimney.

  • Built-in warmth exchanger with a fan
  • Bicameral burning system
  • Heat-resistant stainless steel gasification pipes in the combustion space
  • Easy primary air supply operating

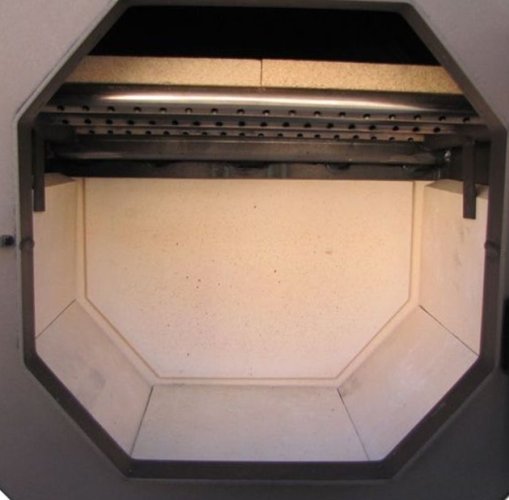

  • Fireclay furnace (long lifespan)
  • Low wood consumption
  • Possibility of stoking wood logs of length 38 cm
  • LDS – Automatic fan revolution regulation (possible to buy additionally)
  • LDT – Automatic transformer revolution regulation (possible to buy additionally)
Nominal performance (kW) 12
Performance (kW) 5 - 12
Heated Space (m³) 100 - 350
Fuel consumption (kg/h) 2.9
Efficiency (by nominal performance) (%) 85.01
Flue diameter (mm) 130
Chimney draught (Pa) 12
Warmed air flow rate (m³/h) 165 - 400
Stable outlet temperature (°C) 50 - 110
Emissions at O2 = 13 % (%) 0.09
Ventilator power input (W) 10 - 36
Stove depth (mm) 690
Stove width (mm) 538
Stove height (mm) 975
Stove weight (kg) 96
Max. log length (mm) 380
Width/depth/height of fireplace (mm) 400/380/295
Type Warm-air stove with Ventilator
Fireplace volume (l) 43
Towing throat above
Fuel required logs, wooden briquettes, wooden splinters (up to 20 % wetness)
Temperature in the chimney (by nominal performance) (°C) 200
Stove door glasssolid (metal sheet)
Pedestal with pedestalwithout pedestal
Control unit withoutWith LDS control unitwith LDT control unit
