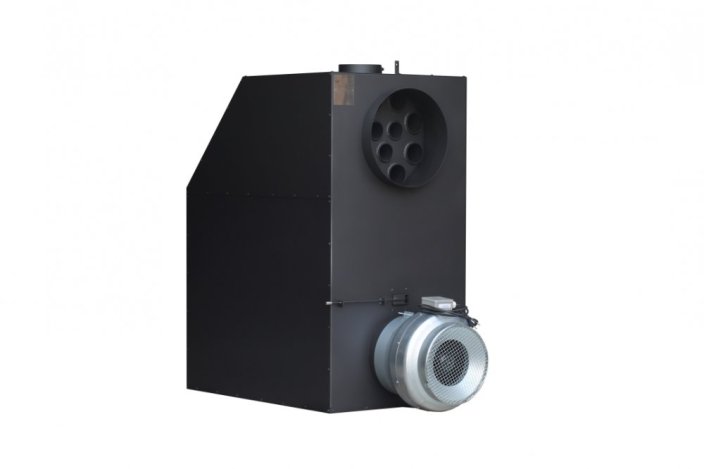

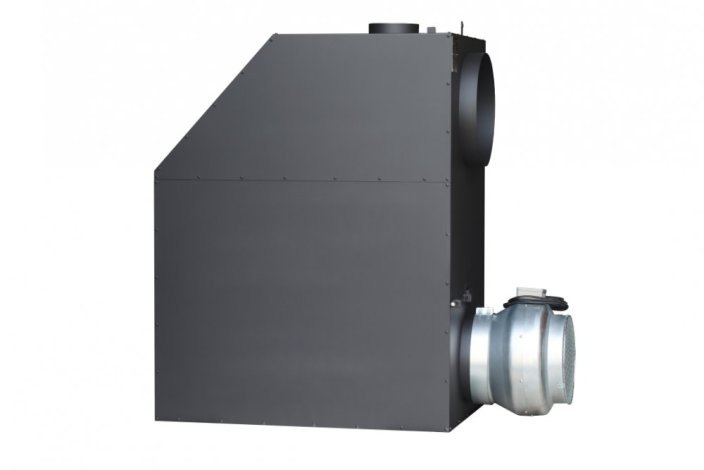

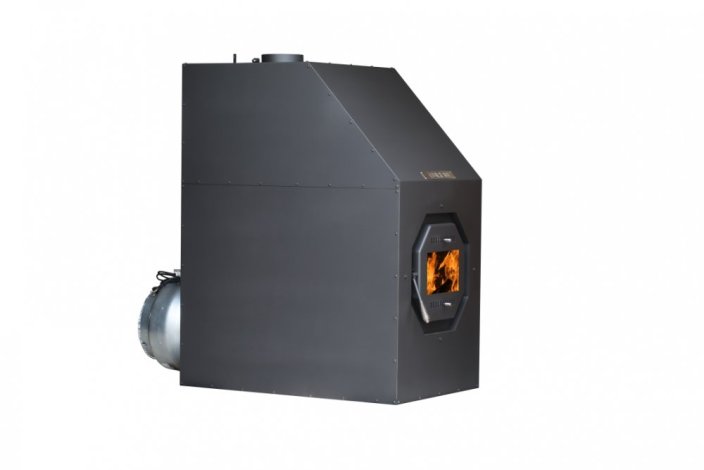

Warm-air wood stove Turbo 50 kW


Workshop warm-air stove with ventilator and outlets for distance air heating. More

Product code: 022TU050

5 687 EUR incl. VAT
specify product selection
glasssolid (metal sheet)

pcs

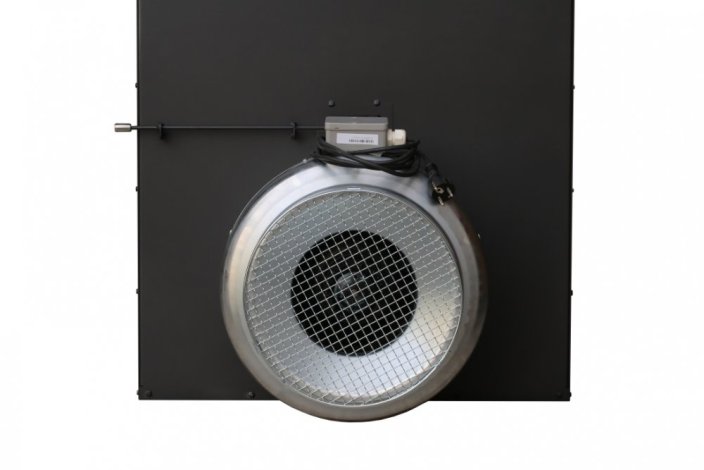

This wood stove is a variety of the warm-air stove Falco Eco and is designed for both local heating and a long distance heat distribution; the device can be placed outside of the heated space (boiler rooms, etc.). This type of stove is completely coated and equipped with radial stove fan that forces the air to the lower part of the stove. The air cools sides of the wood stove and it is then forced through the tubular exchanger out of the stove. This enables the maximal heat transfer and a high efficiency.

The heated air is led into the flange of 400 mm diameter. It can also be distributed through the warm-air distribution system. This circle may be closed and attached with a filtration device. The stove is equipped with a thermometer and an electronic fan revolution regulation LDS, which dependent on temperature secures an ideal air flowrate while it serves as a thermostatic sensor.

- High efficiency

- Built in warmth exchanger

- Heat-resistant steel tubes used

- Bicameral burning system

- Long burning time

- Simple primary air control

- Fireclay fireplace

- Low wood consumption

- Possible to stoke logs of length 110 cm

- The stove can be placed out of the heated space (e. g. boiler room)

- Possibility of heated air distribution

- Overheating risk lowered – long lifespan

- Automatic fan revolution regulation

- Low acquisition costs for the warmth distribution system

- Warm-air cauldron leaflet

- More information about the warm-air cauldrons



Nominal performance (kW) 50
Performance (kW) 25 - 50
Heated Space (m³) 800 - 1600
Fuel consumption (kg/h) 13
Efficiency (by nominal performance) (%) 85.01
Flue diameter (mm) 200
Chimney draught (Pa) 12
Warmed air flow rate (m³/h) 800 - 1600
Stable outlet temperature (°C) 50 - 110
Emissions at O2 = 13 % (%) 0.09
Ventilator power input (W) 65 - 250
Stove depth (mm) 1443
Stove width (mm) 750
Stove height (mm) 1395
Stove weight (kg) 420
Max. log length (mm) 1100
Warmed air outlet diameter (mm) 400
Cold air input diameter (mm) 315
Width/depth/height of fireplace (mm) 500/1150/435
Type Warm-air stove with warm-air distribution
Fireplace volume (l) 270
Towing throat above
Fuel required logs, wooden briquettes, wooden splinters (up to 20 % wetness)
Temperature in the chimney (by nominal performance) (°C) 221
Stove door glasssolid (metal sheet)
CZ Leták Turbo (pdf, 5.3 MB)
CZ Schéma Turbo (jpg, 120.9 kB)
EN Diagram Turbo (jpg, 125.7 kB)
DE Flugblatt Turbo (pdf, 5.5 MB)
DE Schema Turbo (jpg, 132.3 kB)
EN Patent (jpg, 146.3 kB)
CZ Certifikát Turbo (pdf, 1.9 MB)
EN Certificate Turbo (pdf, 1.7 MB)
DE Zertifikat Turbo (pdf, 1.7 MB)
