Warm-air wood stove Turbo 20 kW
Workshop warm-air stove with ventilator and outlets for distance air heating. More
Manufacturer: LS Kamna Product code: 019TU020 Shipping and Payment

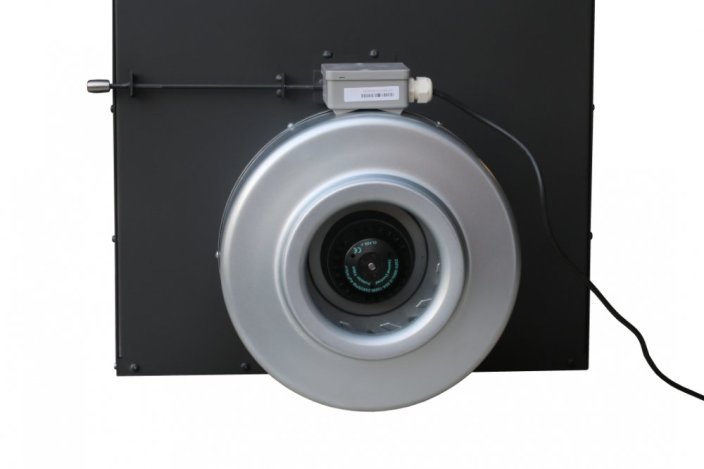

This wood stove is a variety of the warm-air stove Falco Eco and is designed for both local heating and a long distance heat distribution; the device can be placed outside of the heated space (boiler rooms, etc.). This type of stove is completely coated and equipped with radial stove fan that forces the air to the lower part of the stove. The air cools sides of the wood stove and it is then forced through the tubular exchanger out of the stove. This enables the maximal heat transfer and a high efficiency.

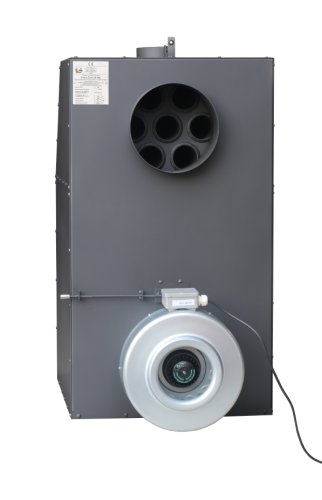

The heated air is led into the flange of 250 mm diameter. It can also be distributed through the warm-air distribution system. This circle may be closed and attached with a filtration device. The stove is equipped with a thermometer and an electronic fan revolution regulation LDS, which dependent on temperature secures an ideal air flowrate while it serves as a thermostatic sensor.
- Built in warmth exchanger
- Heat-resistant steel tubes used
- Bicameral burning system
- Simple primary air control
- Fireclay fireplace
- Possible to stoke logs of length 55 cm
- The stove can be placed out of the heated space (e. g. boiler room)
- Possibility of heated air distribution
- Overheating risk lowered – long lifespan
- Automatic fan revolution regulation
- Low acquisition costs for the warmth distribution system
- Warm-air cauldron leaflet
- More information about the warm-air cauldrons
| Nominal performance (kW) | 20 |
|---|---|
| Performance (kW) | 8 - 20 |
| Heated Space (m³) | 100 - 450 |
| Fuel consumption (kg/h) | 4.4 |
| Efficiency (by nominal performance) (%) | 85.01 |
| Flue diameter (mm) | 150 |
| Chimney draught (Pa) | 12 |
| Warmed air flow rate (m³/h) | 280 - 700 |
| Stable outlet temperature (°C) | 50 - 110 |
| Emissions at O2 = 13 % (%) | 0.09 |
| Ventilator power input (W) | 40 - 158 |
| Stove depth (mm) | 853 |
| Stove width (mm) | 650 |
| Stove height (mm) | 1080 |
| Stove weight (kg) | 180 |
| Max. log length (mm) | 550 |
| Warmed air outlet diameter (mm) | 250 |
| Cold air input diameter (mm) | 200 |
| Width/depth/height of fireplace (mm) | 400/550/295 |
| Type | Warm-air stove with warm-air distribution |
| Fireplace volume (l) | 60 |
| Towing throat | above |
| Fuel required | logs, wooden briquettes, wooden splinters (up to 20 % wetness) |
| Temperature in the chimney (by nominal performance) (°C) | 200 |

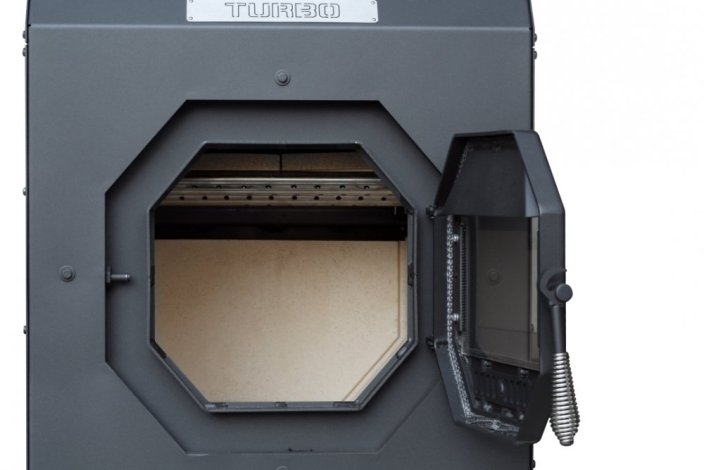

| Stove door |

|
| WEEE-Reg.-Nr. | DE 65241480 |
