Fireplace wood stove Tropic 20 kW with air outlets

Description

This type of wood stoves is designed for residential places, workshops and similar spaces. Thanks to built-in heat exchanger and stove fan it has high efficiency and also the next door rooms can be heated by heat distributors.

An accessory of the stove is a unit which serves as a fan revolution regulator. The unit may be set on manual or automatic mode.

• High efficiency

• Built-in heat exchanger and stove fan (stove fan to buy additionally)

• Stable and reliable system of double-chamber combustion

• Air-wash system - glass self-cleaning

• Stainless steel gasification tubes

• Made from refractory material

• Massive construction made from 5 mm thick material

• One-lever control system for primary or secondary air supply

• Possibility to supply external air for combustion

• Fireclay furnace

• Quiet stove fan is part of the wood stove

• Possibility to distribute air into other rooms from backside of the wood stove

• Possibility to stoke wood logs up to 57 cm long

• Low wood consumption

• Automatic regulation of stove fan efficiency

Parameters

Nominal performance (kW)	20
Performance (kW)	6 - 20
Heated Space (m³)	200 - 600
Fuel consumption (kg/h)	5.4
Efficiency (by nominal performance) (%)	84.1
Flue diameter (mm)	150
Chimney draught (Pa)	12
Warmed air flow rate (m³/h)	100 - 500
Stable outlet temperature (°C)	50 - 110
Emissions at O2 = 13 % (%)	0.06
Ventilator power input (W)	10 - 60

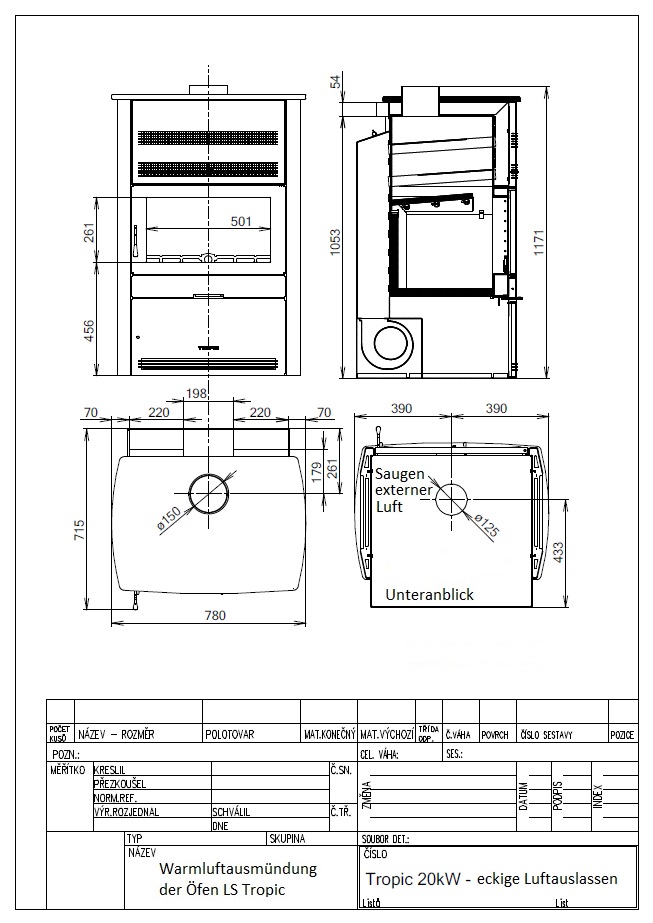

Stove depth (mm)	715
Stove width (mm)	780
Stove height (mm)	1171
Stove weight (kg)	260
Max. log length (mm)	570
Width/depth/height of fireplace (mm)	590/380/320
Type	Warm-air fireplace stove
Warmed air outlets (mm)	2× 55×220
Outlets
Fireplace volume (l)	71.5
Towing throat	above
Fuel required	logs, wooden briquettes, wooden splinters (up to 20 % wetness)
Temperature in the chimney (by nominal performance) (°C)	198
Stone cladding
WEEE-Reg.-Nr.	DE 65241480
